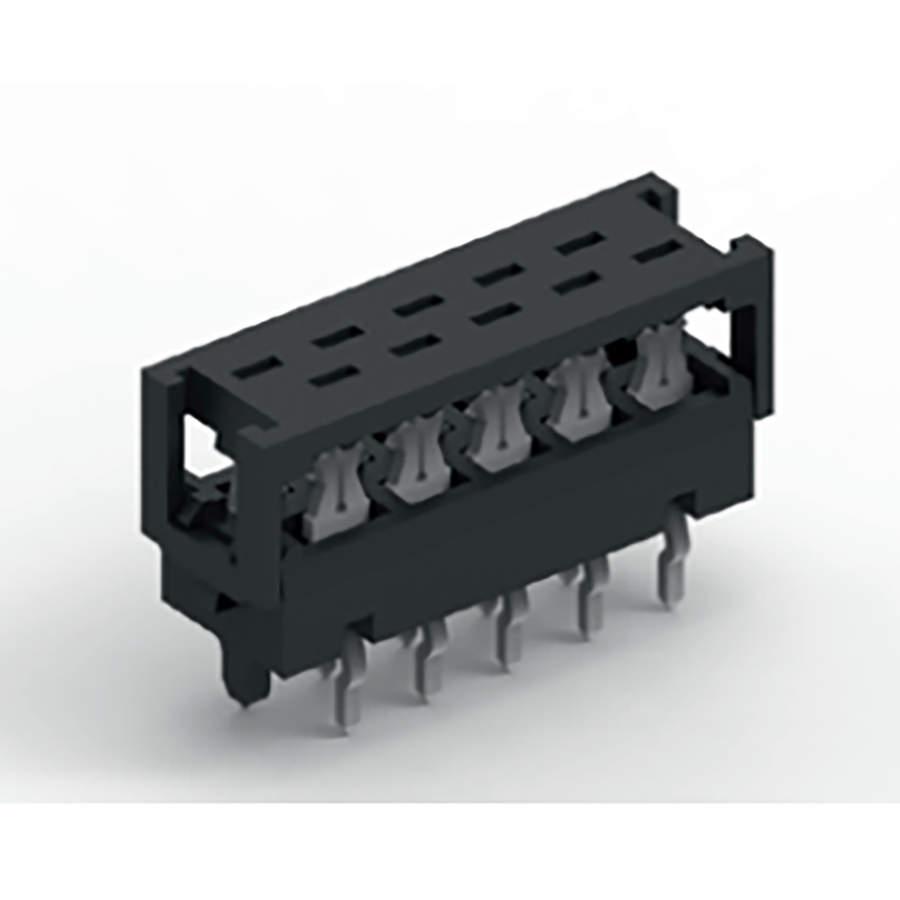

2178713-8
Manufacturer:
TE Connectivity
Mfr.Part #:
2178713-8
Datasheet:
Description:
Headers and Wire Housings Through Hole Ribbon Cable, DIP Header Number of Positions:8 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Length | 13.589 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 8 |
| Height | 5.08 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 1.27 mm |
| Current Rating | 1.3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Gender | Receptacle |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Ribbon Cable, DIP Header |
| Wire/Cable Gauge | 28 AWG |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 1.5 mm |
| Housing Material | Polyester |
| Wire/Cable Type | Ribbon |
| Contact Current Rating | 1.4 A |
| Housing Color | Black |
| Insulation Diameter | 889 µm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6 mm |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
